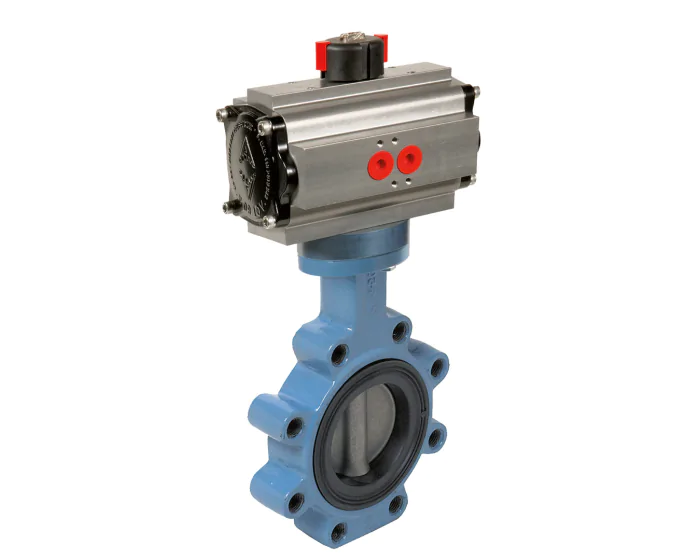

The 1160 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M and EN-GJS-500-7 disc, up to DN300. It is a lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 78.0 |
| Seat | EPDM |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Ductile iron with rilsan coating |
| Position | Normally closed |
| PS (bar) | 10 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Ductile iron Concentric DN40 - 1''1/2 Double acting | 261303015100 | S1003300 |
€206.11
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN40 - 1''1/2 Spring return | 261303016101 | S1003301 |
€243.47
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN50 - 2'' Double acting | 261304015100 | S1003302 |
€206.11
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN50 - 2'' Spring return | 261304016101 | S1003303 |
€245.79
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN65 - 2''1/2 Double acting | 261305015101 | S1003304 |
€248.73
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN65 - 2''1/2 Spring return | 261305016102 | S1003305 |
€297.73
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN80 - 3'' Double acting | 261306015101 | S1003306 |
€271.36
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN80 - 3'' Spring return | 261306016102 | S1003307 |
€314.44
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN100 - 4'' Double acting | 261307015102 | S1003308 |
€292.96
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN100 - 4'' Spring return | 261307016103 | S1003309 |
€351.31
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN125 - 5'' Double acting | 261308015102 | S1003310 |
€336.01
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN125 - 5'' Spring return | 261308016104 | S1003311 |
€452.70
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN150 - 6'' Double acting | 261309015103 | S1003312 |
€401.79
(excl. btw)
|
add to cart |
| Ductile iron Concentric DN200 - 8'' Double acting | 261310015104 | S1003313 |
€516.41
(excl. btw)
|
add to cart |
| Ductile iron Concentric Double acting DN250 - 10'' | 261311015105 | S1003314 |
€723.57
(excl. btw)
|
add to cart |
| Ductile iron Concentric Spring return DN250 - 10'' | 261311016107 | S1003315 |
€1,113.84
(excl. btw)
|
add to cart |
| Ductile iron Concentric Double acting DN300 - 12'' | 261312015106 | S1003316 |
€968.04
(excl. btw)
|
add to cart |
| Ductile iron Concentric Spring return DN300 - 12'' | 261312016108 | S1003317 |
€1,525.43
(excl. btw)
|
add to cart |
